AR110

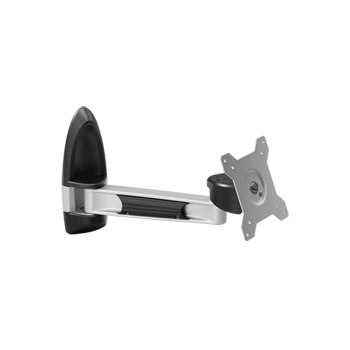

Highgrade AR110 Articulating LCD Wall Mount – Full Motion Monitor Arm
The Highgrade AR110 Articulating LCD Wall Mount is an ergonomic, space-saving wall-mounting solution designed for display sizes ranging from 15” to 32”. Engineered with a durable single articulating arm and built-in Smart Torque Adjust, the AR110 delivers smooth full-motion adjustments—allowing you to easily tilt, swivel, and rotate your screen for optimal viewing comfort.
Whether you are optimizing a corporate office, medical facility, industrial workspace, or home desk set-up, Highgrade Tech. provides premium-quality monitor arms backed by global patents and safety certifications.
Key Features & Benefits
*Full-Motion Flexibility: Effortlessly tilt (±20°), swivel (±90°), and pivot/rotate (360°) your monitor to minimize glare and improve ergonomics.
*Space-Saving Design: Extends up to 265 mm (10.43”) for flexible positioning and retracts to just 85 mm (3.45”) to keep your room tidy.
*Integrated Cable Management: Built-in cable routing channels keep power and display cables organized and out of sight.
*Smart Torque Adjust: User-adjustable torque controls ensure steady monitor support tailored to your display's weight.
*Durable & Certified Quality: Constructed from high-strength aluminum alloy, steel, and durable plastic. Tested and approved with SGS Tensile safety standards.
*Universal VESA Compatibility: Pre-drilled for standard VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
Specification
| Complete System | ||
| Net Weight | 1.07 Kg (2.36 lbs) | |
| Dimension(W*H*D) | 273 x 180 x 265 mm ( 10.75" x 7.09" x 10.43" ) | |
| Screw Type | M4 | |
| Material | Steel/Aluminum Alloy/Plastic | |
| Display System | ||
| Hinge Module | Swivel | +/-90° |
| Tilt | +/-20° | |
| Pivot | 360° | |
| User Torque Adjust | Available | |
| Display Support | Mounting Pattern | 100x100 mm / 75x75 mm |
| Panel Size Support | 15"~ 32" | |
| Support Weight (Max.) | 10Kg(22.04lbs) | |
| Max. Distance To The Wall | 265mm (10.43") | |
| Min. Distance To The Wall | 85mm (3.45") | |
| Extended Arm Provided | 1 | |
| Cable Management | Yes | |

Features
- Smart Torque Control
- Cable Management System
- Articulating Arms / Full Motion Arms
- Aluminum Alloy Build
- Quick Installation
Other 1
TWM336658U
JP3148316U
US7861998B2
CN200820055809.4
DE202008016328U1
