Conference Mobile Cart

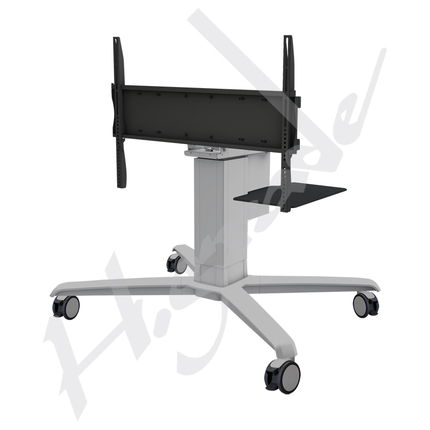

Mobile Trolley Cart with Motorized (Electrical) LIFT and Flat Mount for Large Format e-Touch Interactive Display

Herited by a trusted know-how on hinge, Highgrade Tech. is committed to provide a wide range of best-in-class mounting solutions for professional and Industrial segments. CPM Series has been called to join the series and fulfill the need on educational interaction and business workshop co-work, etc.

CPM862 has been designed as an economic solution kit for educational interaction use and defined a sturdy Mobile Cart Platform supported by motorized height adjust LIFT with a large flat mount bracket. Hence; interactive interactive display or large touch monitor can be positioned ergonomic - up and down at your wish.

The system consists of a well-structured pedestal base, LIFT module with aluminum enclosure which integrated with an external stamping press enclosure for control box, and a heavy duty monitor mount with universal VESA mounting pattern (max. 800x600 mm). A remote controller with RF based access and a side tray plate for laptop have been included onto the shipment package as well. All the available parts shall make the install quick and easy !!

CPM862 is good for educational interactive teaching, workshop/studio co-work, or business presentation. More creative uses can be conceived while Highgrade prepares you well-experiencing on this versatile mobile cart.
View More Details
Download :CPM862 Specification (155 KB)
Complete System
Net Weight 45.2 kg (99.65 lbs)
Dimension(W*H*D) 1314x1648x985mm ( 51.73" X64.88" X38.78" )
Screw Type M4, M5, M6, M8
Material Alumimum Alloy / Plastic / Steel
Power System
Input Voltage(Charger) AC-in 100~240V 50/60 Hz
User Interface
Control Panel Button(Up/Down)/RF Remote Control
Display System
Hinge Module Tilt 0° & 90°
Display Support Max. Mount Pattern 800x600mm
Panel Size Support 80" Suggested
Max. Weight Load 120 kg (264.55 lbs)
Base System
Caster No. 4
Locking 4
Main Lift Tray Yes
Height Adjust Range 500 mm ( 19.69" )
Tension Torque Adjust Not Applicable *
*Locking the Display & Main Lift are always essential before the cart setting for move.
RoHS/REACH Compliance Yes
