TC024

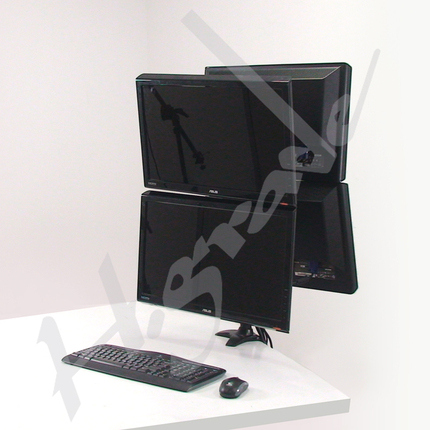

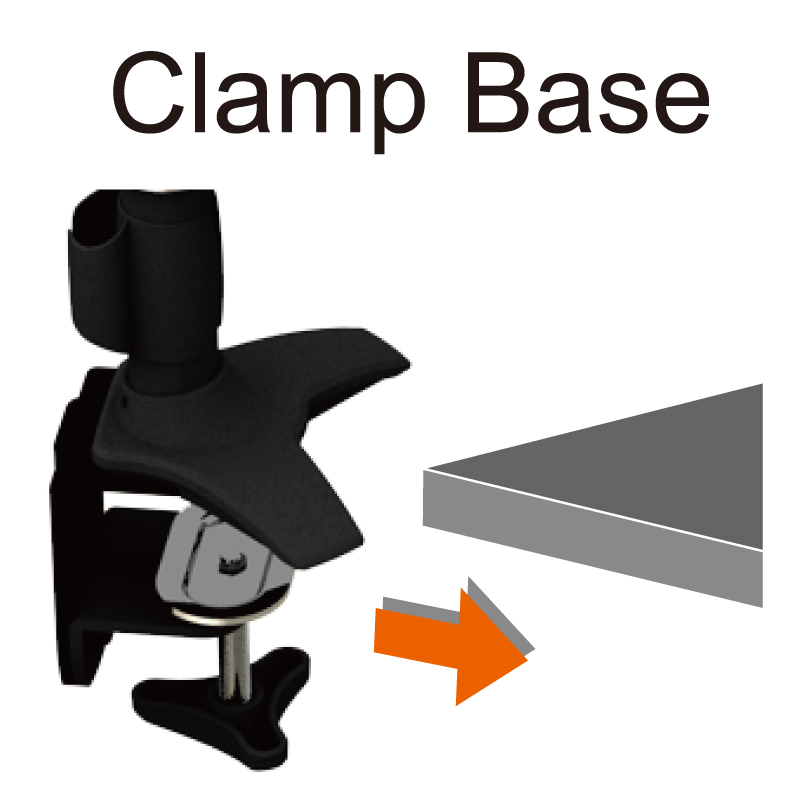

LCD モニタースタンド (二画面二段) 四画面 クランプベース
ハイグレードは台湾において創業数年間以来に液晶やプラズマTV用取付金具やモニタースタンドやプロジェクター壁掛け金具や高さ調整モニタースタンドやタッチパネルやタブレットスタンドなどを製造する信頼性高き専業メーカーでございます。
高質感を強調した製品に手軽に仕入れできる合理的な価格を提供致します。

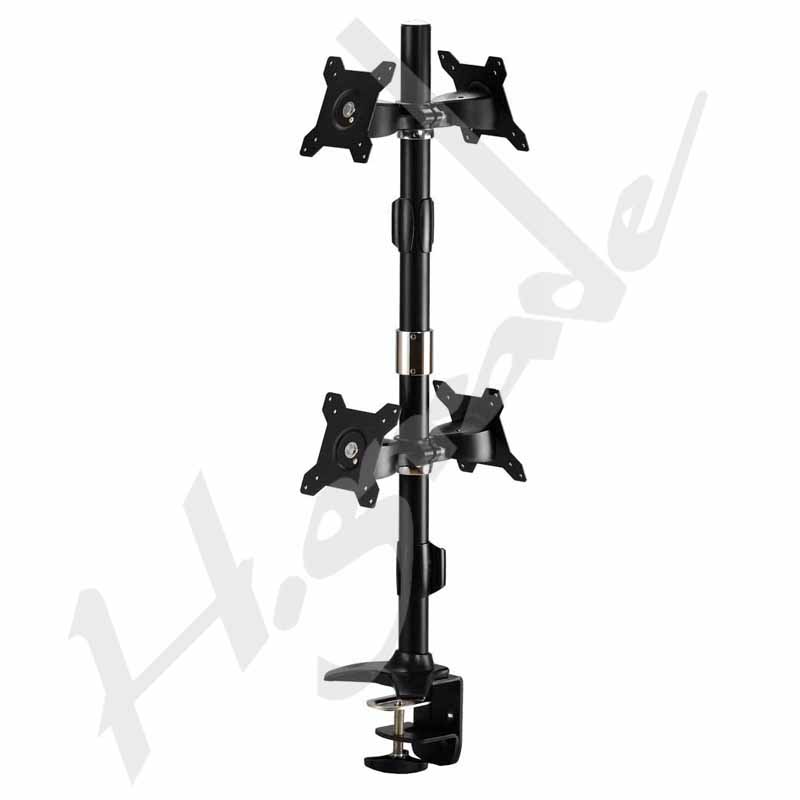

TC024の設計はTC012を拡応用して作った四面接続垂直的クランプタイプ製品です。
高質感を強調した製品に手軽に仕入れできる合理的な価格を提供致します。
TC024の設計はTC012を拡応用して作った四面接続垂直的クランプタイプ製品です。
明細
Complete System | ||
Net Weight | 4.50 Kg (9.92lbs) | |
Dimension(W*H*D) | 158 x 763 x 200 mm ( 6.22" x 30.04" x 7.87" ) | |
Screw Type | M4 | |
Material | Steel/Aluminum Alloy/Plastic | |
Display System | ||
Hinge Module | Swivel | +/-20° |
Tilt | +/-20° | |
Pivot | 360° | |
User Torque Adjust | Available | |
Display Support | Mounting Pattern | 100x100 mm / 75x75 mm |
Display Type | Quad Monitor | |
Panel Size Support | ≦27'' | |
Support Weight (Range) | 2~6 Kg (4.41~13.23 lbs)(Per Hinge) | |
Height Adjustment Range (POLE)(Max.) | 705 mm (27.76") | |

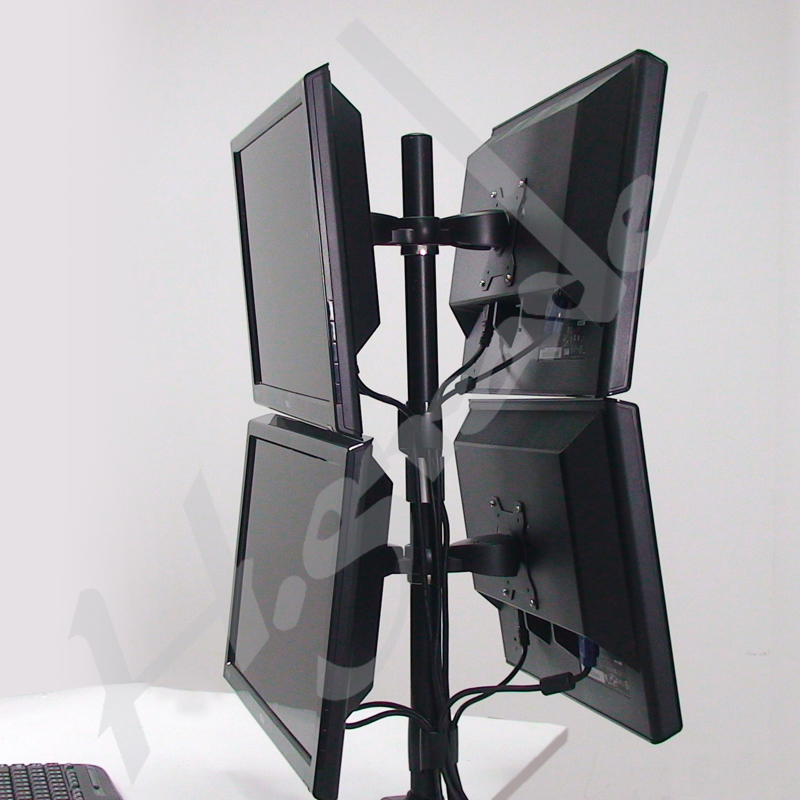

Cable Management | Yes |
特色
Height Adjust
360 degrees rotation
Cable Management
Smart Torque adjust
Aluminium Structure
Easy Installation
360 degrees rotation
Cable Management
Smart Torque adjust
Aluminium Structure
Easy Installation
安全品質承認、
SGS Tensile
他1の
Patents
DE202008016328U1
JP3148316U
TWM336658U
US7861998B2
CN200820055809.4
DE202008016328U1
JP3148316U
TWM336658U
US7861998B2
CN200820055809.4
